Especificações Tecnicas

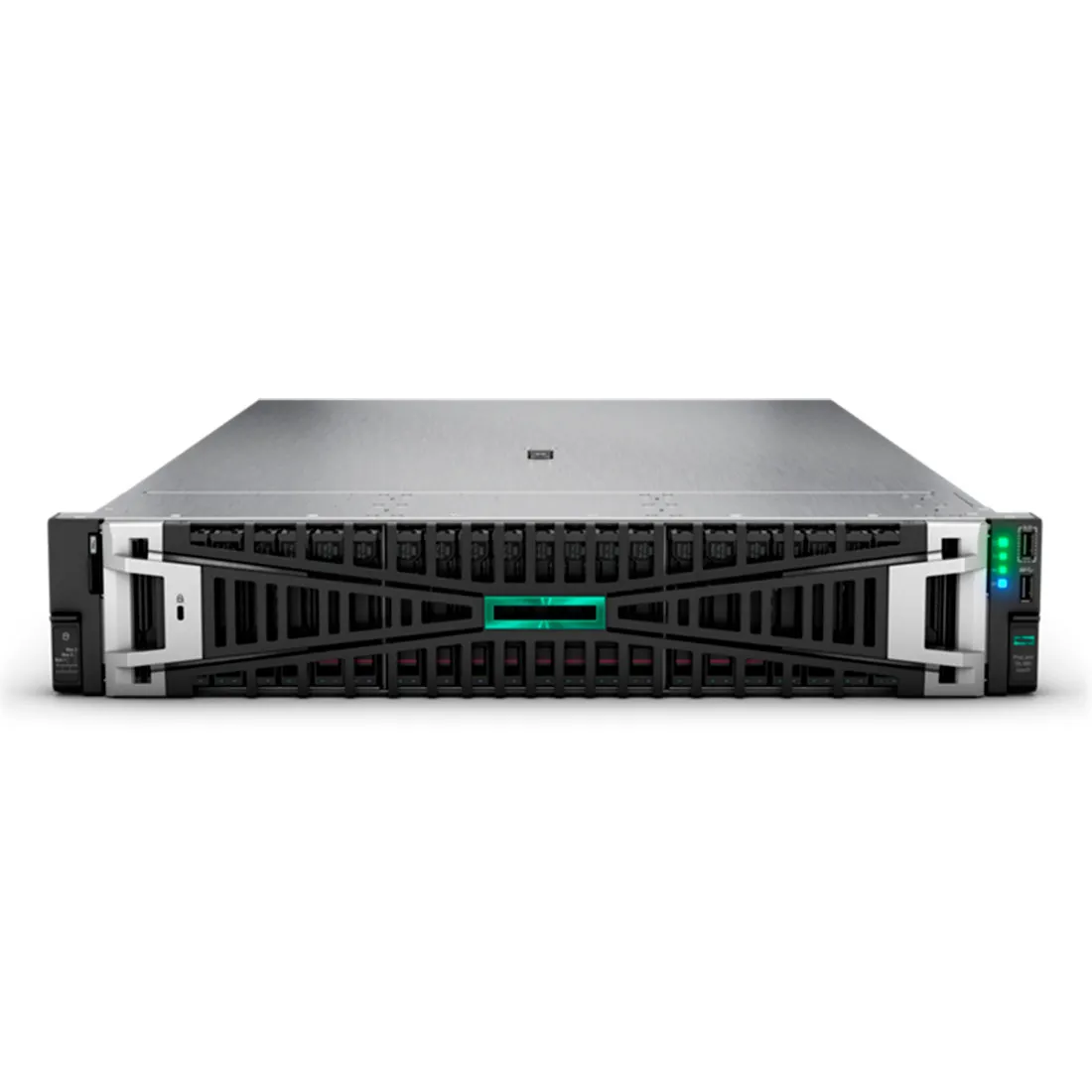

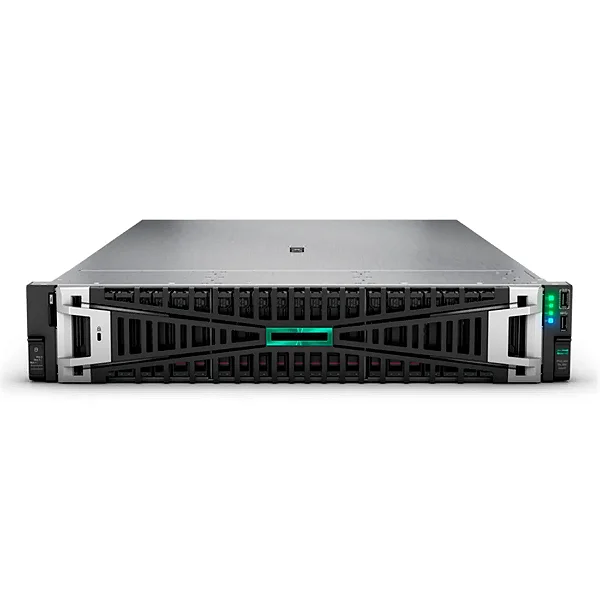

Servidor HPE ProLiant DL380 Gen11 8SFF NC CTO Server
– Processador: (2) Intel® Xeon-Gold 5418Y (2.0 GHz/24-Core/185W) (P49612-B21)
– Memória: (2) HPE 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit (P43328-B21)
– Baia para discos padrão: (8) HPE ProLiant DL380 Gen11 2U 8SFF x1 Tri-Mode U.3 Drive Cage Kit (P48813-B21)
– Disco Rígido Padrão: (2) HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD (P40497-B21)
– Gerenciamento: HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features (BD505A)
– Placa de rede: (1) Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE (P51181-B21)
– Controladora de disco: (1) HPE HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller (P47781-B21)
– NOTE: HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit (P01366-B21)
– HPE ProLiant DL360 Gen11 Storage Controller Enablement Cable Kit (P48918-B21)
– HPE ProLiant DL360 Gen11 CPU1 to OCP2 x8 Enablement Kit (P51911-B21)
– Unidade Óptica: None
– Fonte: (2) HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (P38997-B21)
– Teclado / Teclado: N/A
– HPE CE Mark Removal FIO Enablement Kit (P35876-B21)
– Refrigeraçao: 2x HPE DL380/DL560 G11 High Perf 2U HS Kit (P48818-B21)
– Ventiladores: 1x HPE ProLiant DL380 Gen11 Standard Fan Kit (P49146-B21)
– Formato: Rack 1U
– Cabo: (2) HPE Power cord 6FT C13 IEC to IEC
– Trilho: HPE ProLiant DL3XX Gen11 Easy Install Rail 3 Kit (P52341-B21)
– Gerenciador cabos: HPE DL38X Gen10 Plus 2U Cable Management Arm for Rail Kit (P22020-B21)
– Observação: HPE ProLiant Gen11 2U Bezel Kit (P50400-B21)”

Memórias

P43328-B21 – HPE 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

Discos
P40497-B21 – HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD
P40502-B21 – HPE 480GB SATA 6G Mixed Use SFF BC Multi Vendor SSD
P40503-B21 – HPE 960GB SATA 6G Mixed Use SFF BC Multi Vendor SSD
P44009-B21 – HPE 1.92TB SATA 6G Read Intensive SFF BC PM893 SSD
P44013-B21 – HPE 1.92TB SATA 6G Mixed Use SFF BC PM897 SSD
P40500-B21 – HPE 3.84TB SATA 6G Read Intensive SFF BC Multi Vendor SSD
P40510-B21 – HPE 960GB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD
P40507-B21 – HPE 1.92TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD
P40511-B21 – HPE 1.92TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD
P49047-B21 – HPE 800GB SAS 24G Mixed Use SFF BC Multi Vendor SSD
P49029-B21 – HPE 960GB SAS 24G Read Intensive SFF BC Multi Vendor SSD
P49049-B21 – HPE 1.6TB SAS 24G Mixed Use SFF BC Multi Vendor SSD
P49035-B21 – HPE 3.84TB SAS 24G Read Intensive SFF BC Multi Vendor SSD
P28610-B21 – HPE 1TB SATA 6G Business Critical 7.2K SFF BC 1-year Warranty HDD
P28500-B21 – HPE 2TB SATA 6G Business Critical 7.2K SFF BC 1-year Warranty 512e HDD
P40430-B21 – HPE 300GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD
P28586-B21 – HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD
P28352-B21 – HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD
P28028-B21 – HPE 300GB SAS 12G Mission Critical 15K SFF BC 3-year Warranty Multi Vendor HDD
P40432-B21 – HPE 900GB SAS 12G Mission Critical 15K SFF BC 3-year Warranty Multi Vendor HDD

Placas de Rede

P21106-B21 – Intel I350-T4 Ethernet 1Gb 4-port BASE-T Adapter for HPE
P51178-B21 – Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE
P26253-B21 – Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE
P26262-B21 – Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
P26259-B21 – Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE

Controladoras e HBasic/Cabos

804398-B21 HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller
P01366-B21 HPE 96W Smart Storage Battery (up to 20 Devices/145mm Cable) Kit

SFP e Cabos

455883-B21 – Transceiver(s) Óptico(s) Ethernet modelo 10Gb SR (Short Range) SFP+
AJ836A – Cabo(s) de fibra de 5 metros Multi-mode OM3 LC/LC
QK734A – Cabo(s) de fibra Premier Flex LC/LC OM4 Multi-mode OM4 com 5m

Outros

701498-B21 – HPE Mobile USB DVDRW Drive
726537-B21 – HPE 9.5mm SATA DVD-RW Optical Drive (Requer PN P50728-B21)
AF591A – Cabo(s) de energia padrão Brasil – NBR14136 – com 1.83m, 10A, conector C13

Placas Gráficas

E6U64ABE – Licença Eletrônica do software HPE Integrated Lights-Out (iLO) Advanced com 3 anos 24×7
P8B26AAE – HPE OneView without iLO including 3yr 24×7 Support Flexible Quantity E-LTU

Sistema Operacional

P46172-DN1 – Microsoft Windows Server 2022 10-core Essentials Reseller Option Kit en/fr/es/xc SW
P46171-DN1 – Microsoft Windows Server 2022 16-core Standard Reseller Option Kit en/fr/es/xc SW
P46123-DN1 – Microsoft Windows Server 2022 16-core Datacenter Reseller Option Kit en/fr/es/xc SW
P46199-B21 – Microsoft Windows Server 2022 2-core Std Add Lic en/cs/de/es/fr/it/nl/pl/pt/ru/sv/ko/ja/xc SW
P46196-B21 – Microsoft Windows Server 2022 4-core Std Add Lic en/cs/de/es/fr/it/nl/pl/pt/ru/sv/ko/ja/xc SW
P46195-B21 – Microsoft Windows Server 2022 16-core Std Add Lic en/cs/de/es/fr/it/nl/pl/pt/ru/sv/ko/ja/xc SW
P46214-B21 – Microsoft Windows Server 2022 2-core DC Add Lic en/cs/de/es/fr/it/nl/pl/pt/ru/sv/ko/ja/xc SW
P46213-B21 – Microsoft Windows Server 2022 4-core DC Add Lic en/cs/de/es/fr/it/nl/pl/pt/ru/sv/ko/ja/xc SW
P46212-B21 – Microsoft Windows Server 2022 16-core DC Add Lic en/cs/de/es/fr/it/nl/pl/pt/ru/sv/ko/ja/xc SW
P46215-B21 – Microsoft Windows Server 2022 5 Users CAL en/cs/de/es/fr/it/nl/pl/pt/ru/sv/ko/ja/xc LTU
P46216-B21 – Microsoft Windows Server 2022 5 Devices CAL en/cs/de/es/fr/it/nl/pl/pt/ru/sv/ko/ja/xc LTU
P46221-B21 – Microsoft Windows Server 2022 RDS 5 Users CAL en/cs/de/es/fr/it/nl/pl/pt/ru/sv/ko/ja/xc LTU
P46222-B21 – Microsoft Windows Server 2022 RDS 5 Devices CAL en/cs/de/es/fr/it/nl/pl/pt/ru/sv/ko/ja/xc LTU

Red Hat

G3J28AAE – RHEL Svr 2 Sckt 2 Gst 1yr 24×7 E-LTU
G3J30AAE – RHEL Svr 2 Sckt/2 Gst 3yr 24×7 E-LTU
G3J24AAE – Red Hat Enterprise Linux for Virtual Datacenters 2 Sockets 3yr 24×7 E-LTU

SUSE

N7F54AAE – SLES 1-2 Sckt/1-2 VM 1yr 24×7 E-LTU
M6K28AAE – SLES 1-2 Sckt/1-2 VM 3yr 24×7 E-LTU
R8V77AAE – SLES 1-2Skt Unl VM w/LP 3yr 24×7 E-LTU

Serviços para Servidor
O prazo limite para compra do serviço de Extensão de Garantia é de 180 dias, a partir da data da compra do equipamento

Serviços Tech Care

H93F8E – HPE 3 Year Tech Care Basic DL380 Gen11 HW Service
H93G4E – HPE 3 Year Tech Care Essential DL380 Gen11 HW Service
H93G7E – HPE 3 Year Tech Care Critical for DL380 Gen11 HW Service
H93J2E – HPE 5 Year Tech Care Basic DL380 Gen11 HW Service
H93J8E – HPE 5 Year Tech Care Essential DL380 Gen11 HW Service
H93K1E – HPE 5 Year Tech Care Critical for DL380 Gen11 HW Service
H93K4E – HPE 6 Year Tech Care Basic DL380 Gen11 HW Service
H93K8E – HPE 6 Year Tech Care Essential DL380 Gen11 HW Service
H93L0E – HPE 7 Year Tech Care Basic DL380 Gen11 HW Service
H93L4E – HPE 7 Year Tech Care Essential DL380 Gen11 HW Service

Instalação

U4554E – HPE Proliant DL/ML Install SVC
U4555E – HPE Proliant DL/ML Startup SVC
